Description
1. CE FCC RoHS ERP PSE certificated
2. Ultra-thin 3 CCT double dial design panel light
3. Equipped with high-efficiency DOB IC constant driver
4. CCT and power options selectable through dip switch
5. CCT auto mode to changeable by switch on/off
6. Energy-saving LED lighting for indoor lighting
7. Multiple sizes to choose for different installation hole
8. Mainly used in household, living room, ceiling, home, shopping mall, commercial lighting, etc.
Share:
Product Introduction
Double Dial 3 CCT LED Panel Light
NEW CCT DOUBLE DIAL BACKLIT LED PANEL LIGHT
Traditional panel lights are mostly single-color conventional lighting. When users want to change the light color and brightness after purchase, the function will be greatly hindered. In order to solve this problem, this product is perfectly equipped with dual dip switches. Users can freely adjust the required light color and brightness through the dip switches and turn on the switch to control the automatic dimming function. In addition, the new appearance and structural design make the product more commercially valuable.
High Performance Heat Disspation

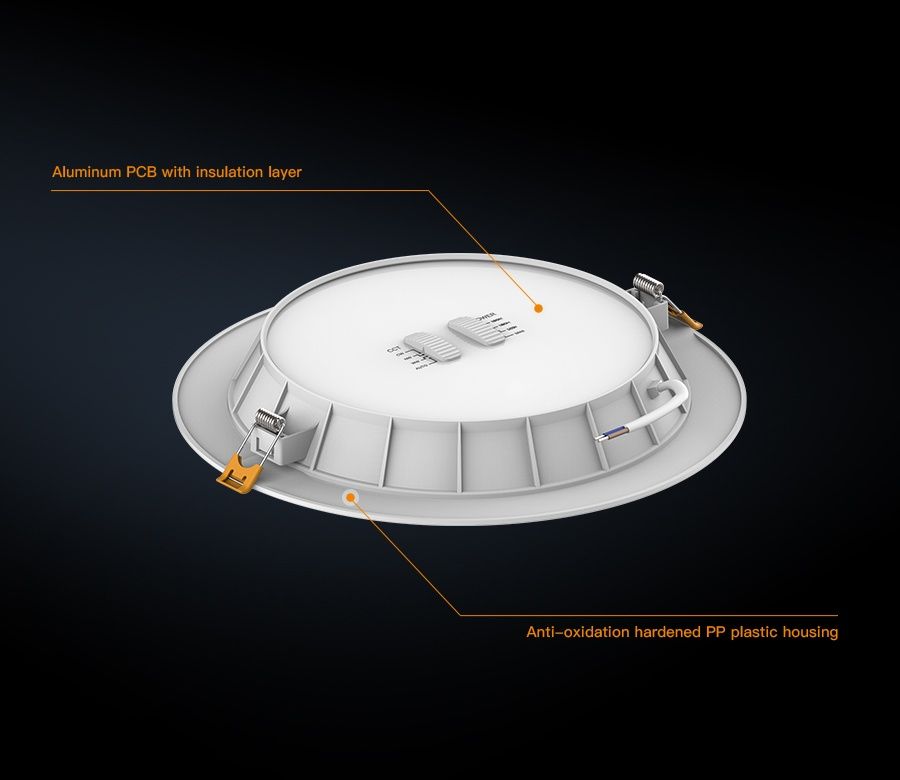

Exposed aluminum PCB with insulation layer for more efficient heat dissipation
The bottom of traditional panel lights is closed and heat dissipation is limited.
This product makes a breakthrough by exposing the aluminum PCB to the lamp body, greatly improving the heat dissipation performance.
At the same time, an insulating layer is added to the exposed surface, which is safer while providing strong heat dissipation.
The shell is made of anti-oxidation PP plastic in one piece, which simplifies the lamp structure and makes production efficiency more efficient.
Energy Saving With High Lumens

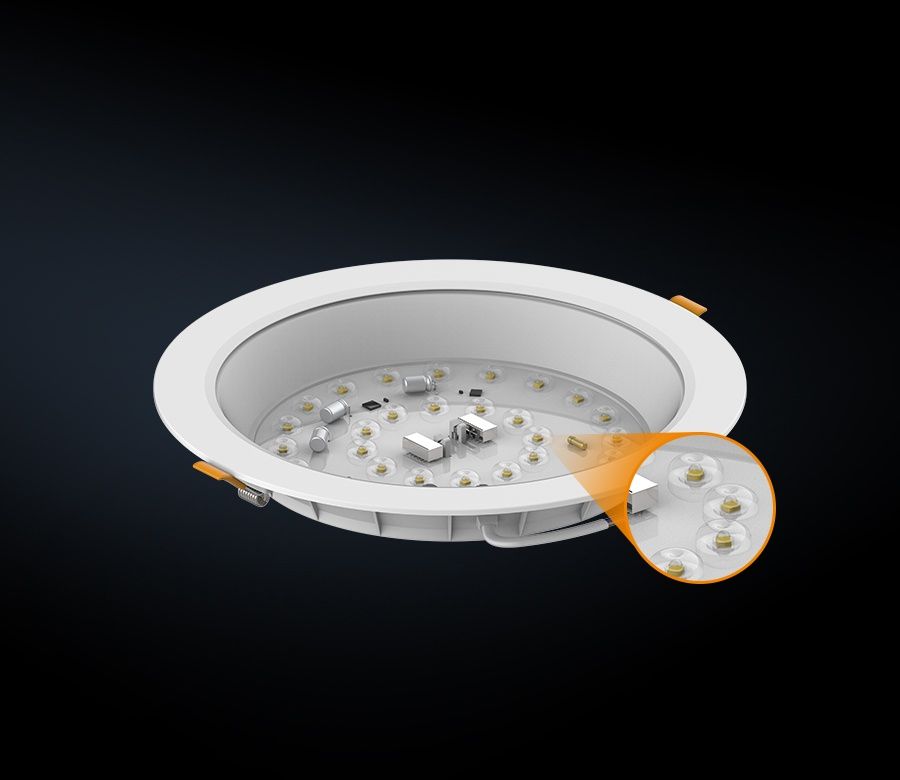

DOB BUILT-IN DRIVER + OPTICAL LENS SOLUTION
The simplified DOB built-in driver improves production efficiency while making the product more stable and durable.
The optical lens design makes the light effect more uniform and bright.

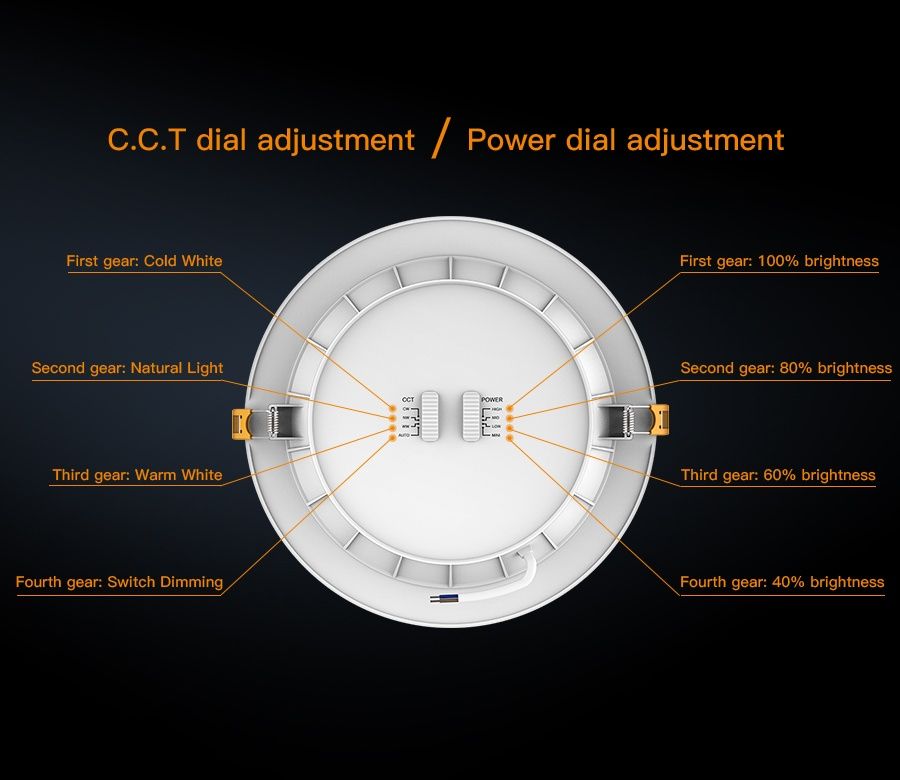

Power and CCT Adjustable
Double dial switch to freely adjust the power and photoelectric parameters of the product
Different Functions to Choose

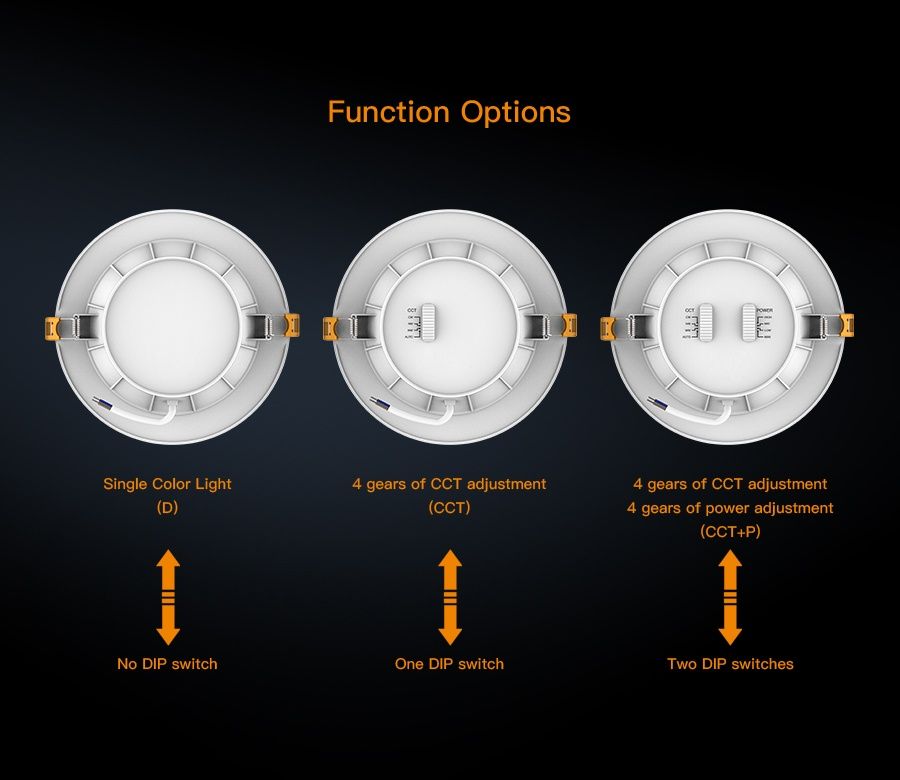

Function Options
OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
| DOUBLE DIAL 3 CCT LED PANEL LIGHT | |||||||||||||||
| Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
| Model: LF-PL-RO-A / LF-PL-SQ-A | |||||||||||||||
| Electricity Parameter | |||||||||||||||
| ·Rated Power: | 6W 12W 18W 24W | ||||||||||||||
| ·Working Power: | 6W 12W 18W 24W（±5%） | ||||||||||||||
| ·Input Voltage: | AC100-265V | ||||||||||||||
| ·Freqency Range: | 50/60Hz | ||||||||||||||
| ·Power Factor: | ＞0.5 | ||||||||||||||
| ·Power Efficiency: | 88﹪ | ||||||||||||||
| Optical Parameter | |||||||||||||||
| ·Light source configuration | Sanan | ||||||||||||||
| ·Color Temperature: | 3000K 4000K 6500K/3CCT | ||||||||||||||
| ·Led Initial Flux: | 480-1920lm | ||||||||||||||
| ·Luminous Efficiency: | 80LM/W (±5%) | ||||||||||||||
| ·Light attenuation standard | ≥25000 | ||||||||||||||
| ·Power configuration: | DOB IC Driver | ||||||||||||||
| ·Color Rendering Index: | Ra＞80 | ||||||||||||||
| ·Luminous Anlge: | ＞120° | ||||||||||||||
| Lamp Specification | |||||||||||||||
| ·Lamp Material: | PP | ||||||||||||||
| ·Lampshade Material: | PP Cover | ||||||||||||||
| ·Lamp Colour: | White | ||||||||||||||
| ·Installation: | Embedded | ||||||||||||||
| ·Lamp Weight: | 0.3-0.8KG | ||||||||||||||
| ·Thickness: | 29mm | ||||||||||||||
| ·IP Grade: | IP20 | ||||||||||||||
| ·Working Temperature: | -20℃-60℃ | ||||||||||||||
| ·Working Life-span: | 35000H | ||||||||||||||
