Description
1. CE FCC RoHS ERP PSE certificated
2. Modern ultra-thin led ceiling light, 4 CCT Dip, RGB Backlight, 2.4G remote control optional
3. Equipped with high-efficiency IC constant driver
4. Color light changeable by switch on/off
5. Energy-saving LED lighting for indoor lighting

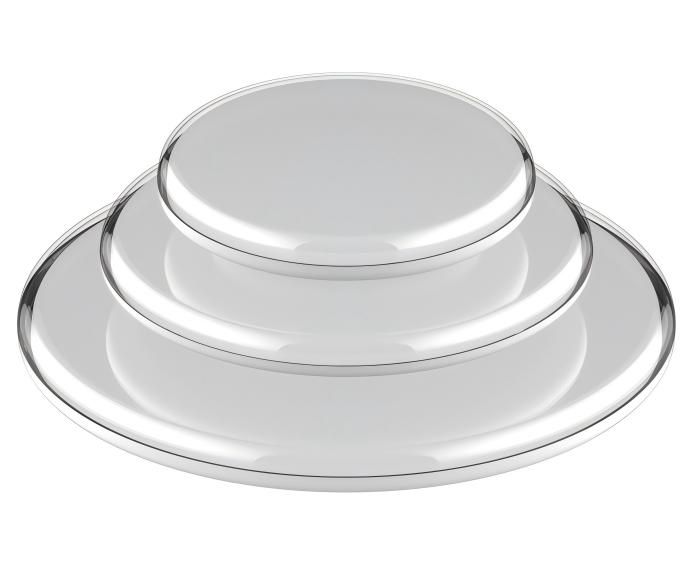

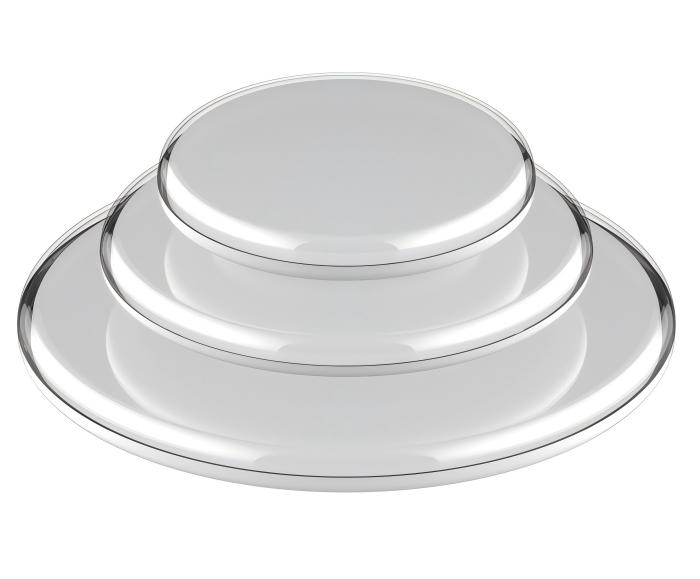

6. Multiple sizes to choose for different installation places, D230-24W, D300-32W, D400-40W
7. This Ultra-Thin Round Crystal LED Ceiling Light is mainly used in household, living room, ceiling, home, shopping mall, commercial lighting, etc.
Share:
Product Introduction
MODERN LED CEILING LIGHT

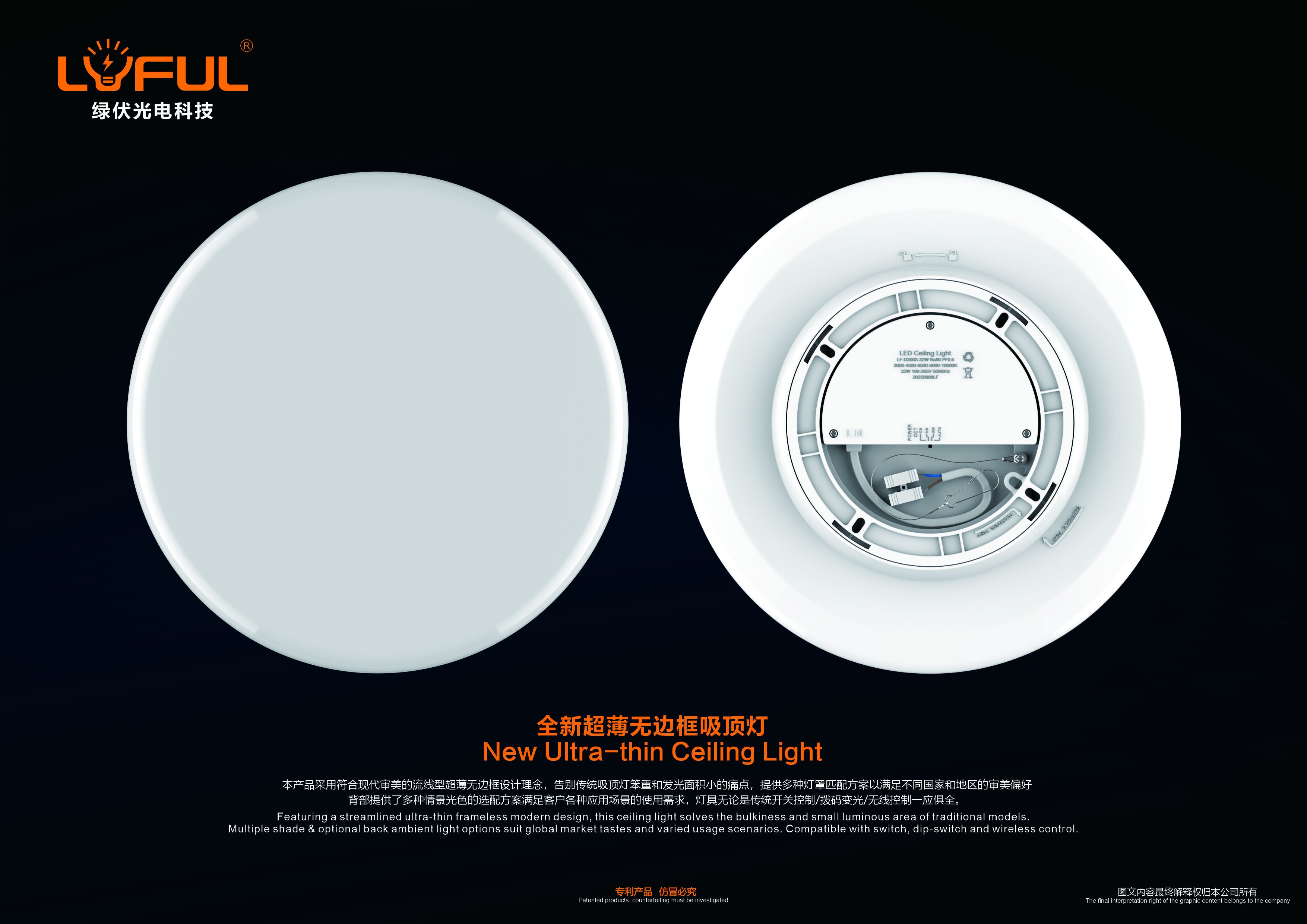

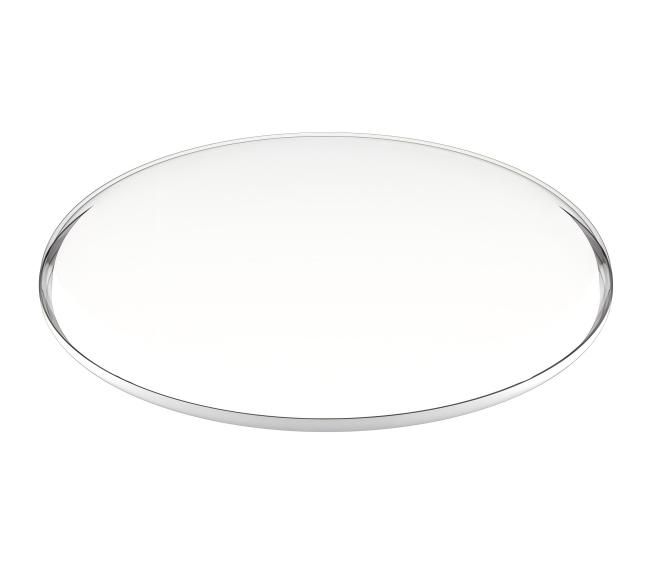

New Ultra-thin Ceiling Light
Featuring a streamlined ultra -thin frameless modern design. this ceiling light soves the bukiness and smalluminous area of traditional models.
Mutiple shade & optional back ambient ight options suit glbbal maikelt tastes and varied usage scenarios. Compatible with switch. dip switch and vicles control
CCT SELECTABLE WITH TRI-COLOR SWITCH DIMMING
3CCT DIP Switch+ Switch Dimming
Comes with a 4CCT dip switch. Select your desired color temperature (warm white, natural white, cool white) using the dip switch before installation, then complete mounting.
To enable three-color switching function, set the dip switch to AUTO before installation. Once installed, three color temperatures can be toggled by the wall switch.

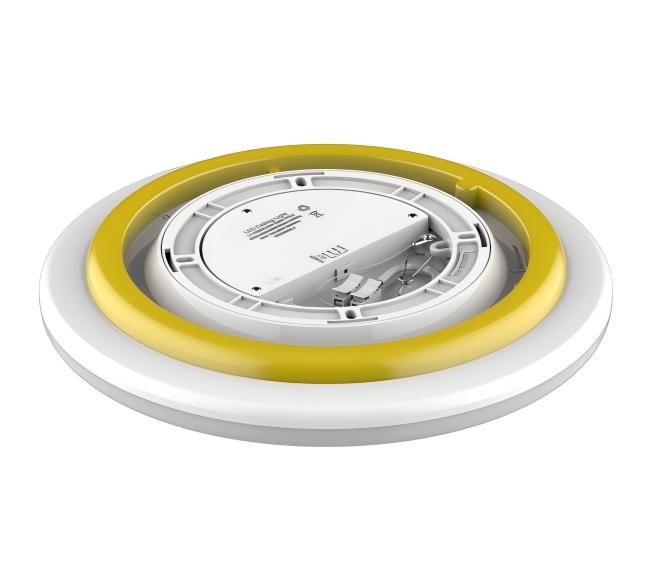

HOME AMBIENT BACKLIGHT

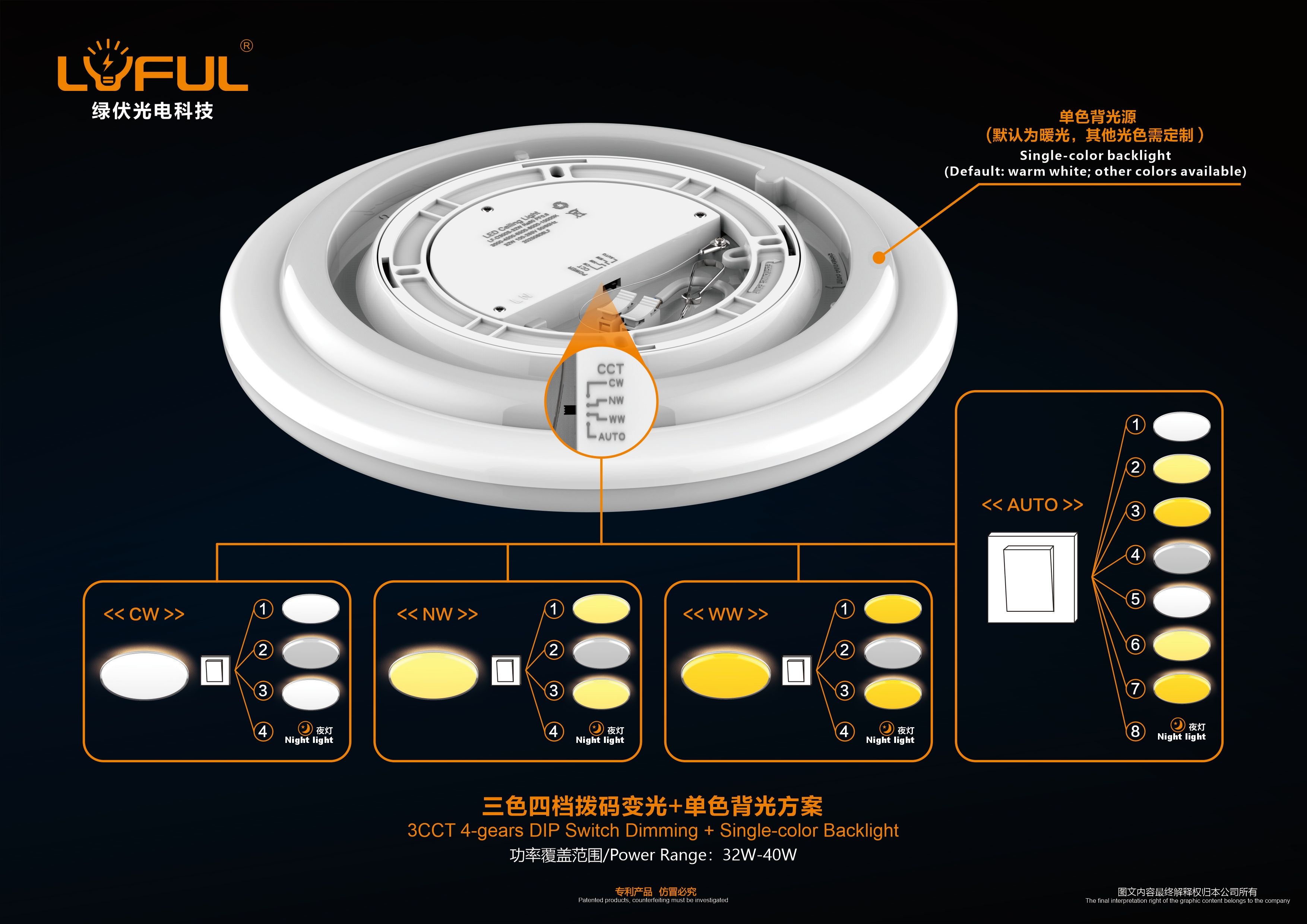

3CCT 4-gears DIP Switch Dimming + Single-color Backlight
3CCT with 4-level dip-switch dimming + single-color backlight solution.
Customize light colour via dip switch, paired with elegant single-color backlight for layered lighting effect.

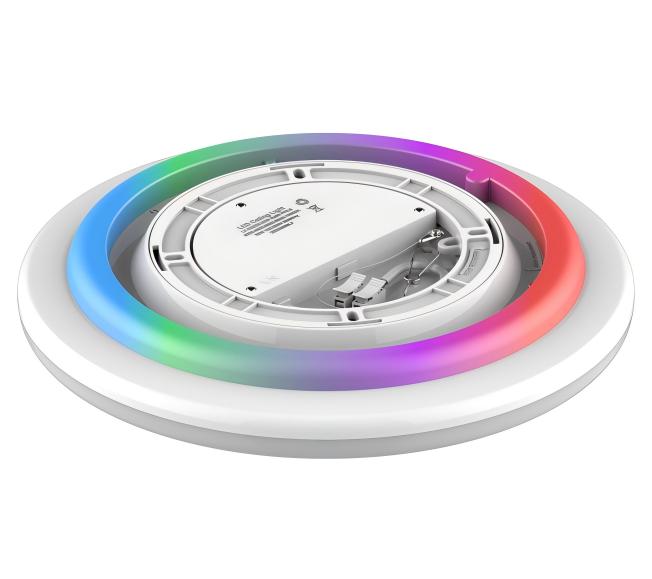

RGB BACKLIGHT WITH REMOTE FUNCTION

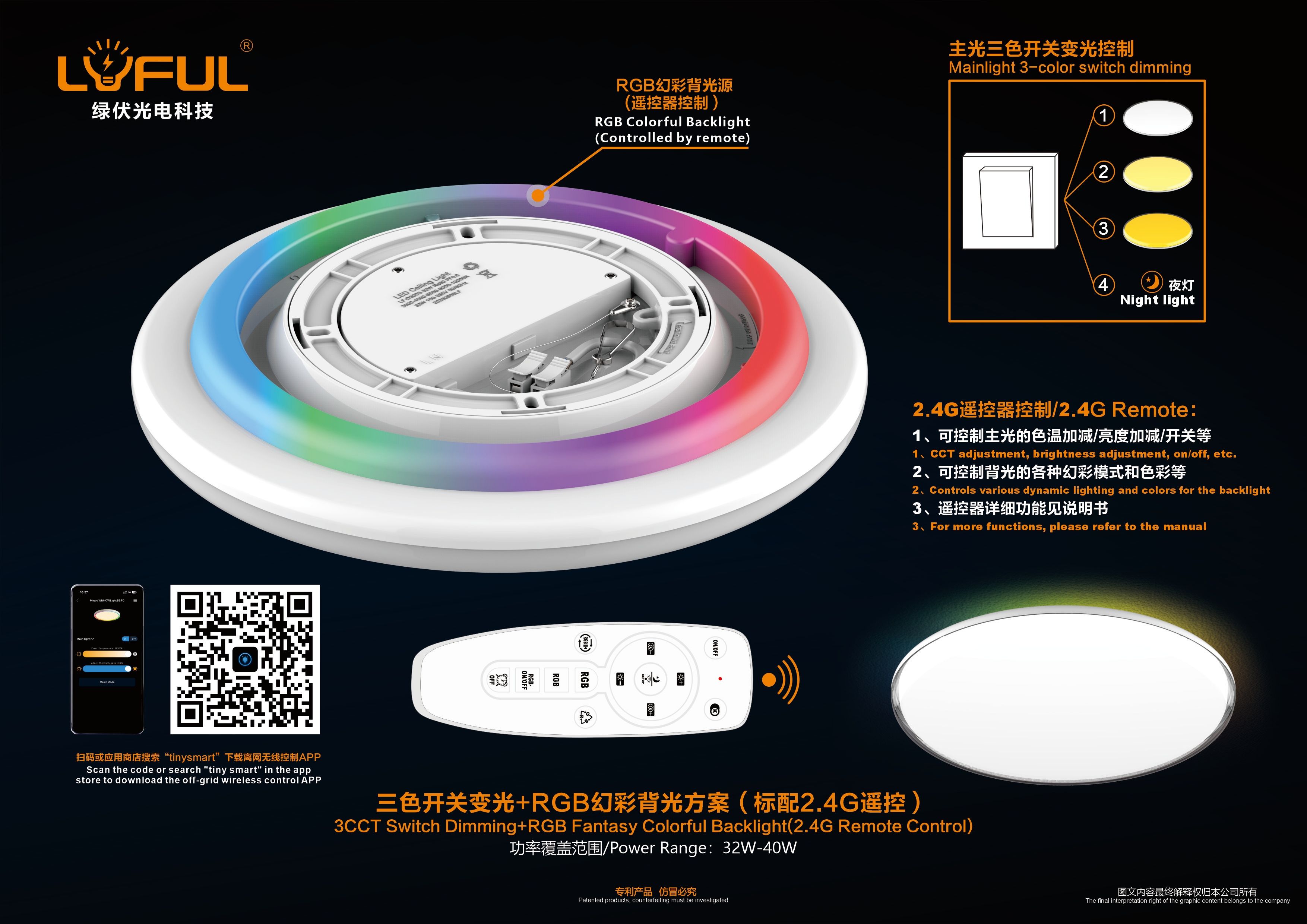

3CCT Switch Dimming+RGB Fantasy Colorful Backlight(2.4G Remote Control)
Three-color switching is available via wall switch after installation: Warm White – Natural White – Cool White.
Built-in RGB dynamic ambient backlight. After successful pairing, the 2.4G remote control enables light operation.
The remote adjusts brightness, color temperature and timer function of main front light, as well as RGB backlight colors and ambient lighting modes.
Bluetooth control via dedicated APP is also supported. Please refer to the user manual for detailed operation steps.

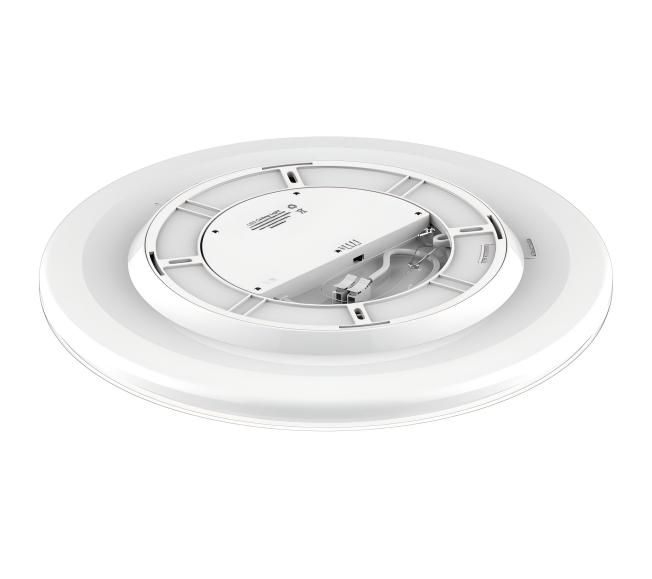

Simple Ceiling Installation
Convenient Maintenance For Lamp Faults
This ultra-thin round crystal led ceiling lamp features an optimized structural design. If the lamp malfunctions after prolonged use,
you can access and repair it simply by opening the maintenance coverno need to disassemble the entire lamp.
OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Discover LUFUL’s landscape lighting solutions with high mast lights, courtyard lamps, and LED retrofit sources. Perfect for gardens, parks, and outdoor projects.
Street Lighting Project Solutions
Upgrade your road lighting with LUFUL’s smart LED street lighting project solutions. Explore WP1 Smart Waterproof Bulb and WP2 Smart Street Light Bulb.
Explore LUFUL’s industrial high bay lighting for workshops and warehouses. Upgrade with LED high bay lights and retrofit bulbs for efficient, durable, and energy-saving lighting.
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
Modern Crystal LED Ceiling Lamp | |||||||||||||||
| Spec Sheet Revision Date: 2026-08-01 | |||||||||||||||
| Model: LF-D230-24W LF-D300-32W LF-D400-40W | |||||||||||||||
| Electricity Parameter | |||||||||||||||
| ·Rated Power: | 24W 32W 40W | ||||||||||||||
| ·Working Power: | 24W 32W 40W（±5%） | ||||||||||||||
| ·Input Voltage: | AC220-240V | ||||||||||||||
| ·Freqency Range: | 50/60Hz | ||||||||||||||
| ·Power Factor: | ＞0.5 | ||||||||||||||
| ·Power Efficiency: | 88% | ||||||||||||||
| Optical Parameter | |||||||||||||||
| ·Light source configuration | Sanan | ||||||||||||||
| ·Color Temperature: | 3000K 4000K 6500K/4CCT/2.4G Remote | ||||||||||||||
| ·Led Initial Flux: | 2160-3600lm | ||||||||||||||
| ·Luminous Efficiency: | 90LM/W (±5%) | ||||||||||||||
| ·Light attenuation standard | ≥25000 | ||||||||||||||
| ·Power configuration: | IC Driver | ||||||||||||||
| ·Color Rendering Index: | Ra＞80 | ||||||||||||||
| ·Luminous Anlge: | ＞120° | ||||||||||||||
| Lamp Specification | |||||||||||||||
| ·Lamp Material: | ABS | ||||||||||||||
| ·Lampshade Material: | ABS | ||||||||||||||
| ·Lamp Colour: | White/Black | ||||||||||||||
| ·Installation: | Surface Mounted | ||||||||||||||
| ·Lamp Weight: | 2KG | ||||||||||||||
| ·Thickness: | 49mm | ||||||||||||||
| ·IP Grade: | IP20 | ||||||||||||||
| ·Working Temperature: | -20℃-60℃ | ||||||||||||||
| ·Working Life-span: | 35000H | ||||||||||||||
Related Frequently Asked Questions
Related Products
Customized diferentiated products for customers according to diferent customer needs
LED Crystal Ceiling Light 24W 36W Recessed Surface Mount Compatible
CE FCC RoHS ERP PSE Certificated
View More

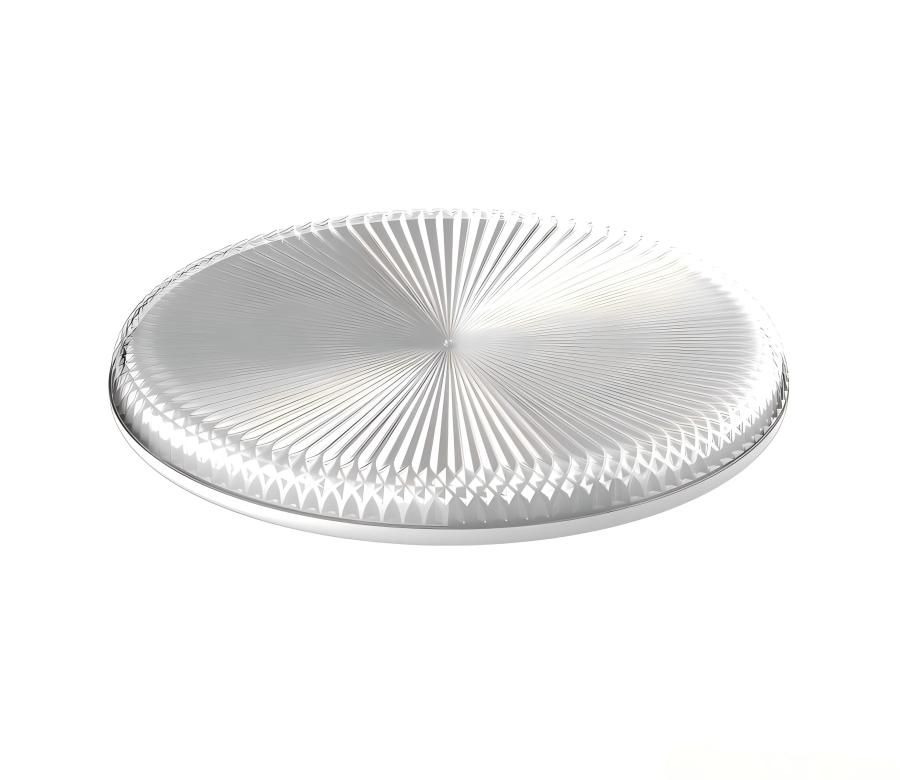

New Ultra-thin Crystal Modern LED Ceiling Light
