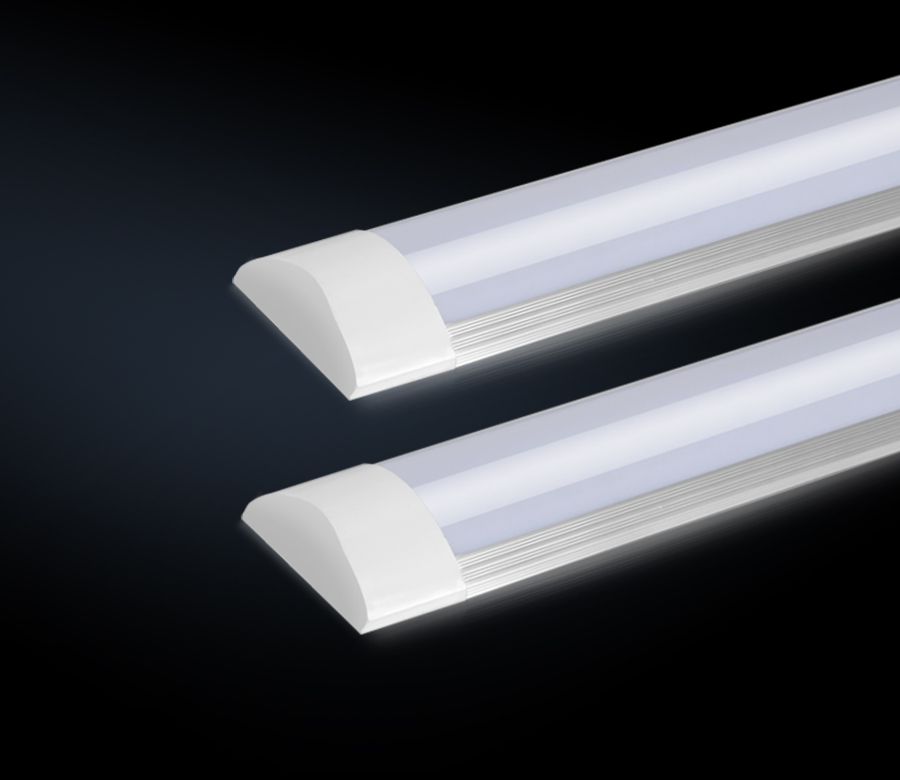

LED Batten Tube Light 36W

Description

1. CE FCC RoHS ERP PSE certificated

2. Integrated LED tube light fixture, surface mounting

3. Die-casting aluminum housing for better heat disspation

4. Equipped with high-efficiency IC constant driver

5. Energy-saving LED lighting for indoor lighting

6. High lumens up to 130LM/W, replace fluorescent tubes

7. Mainly used in household, living room, shopping mall, commercial lighting, garage, warehouse, factory, etc.

Inquire Now Next Product

Product Introduction

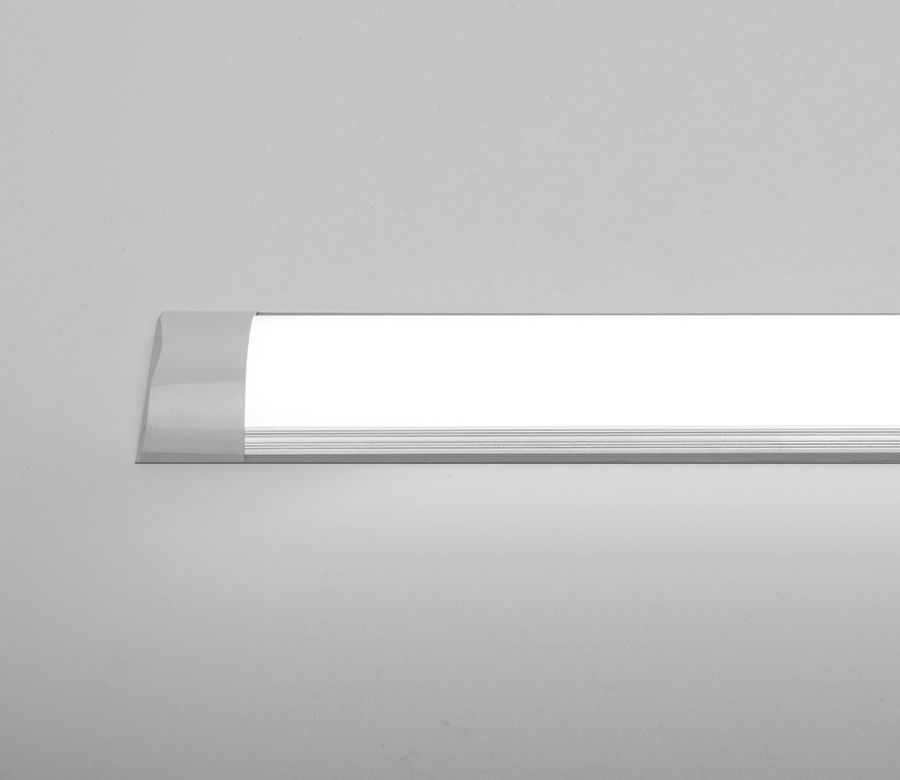

Indoor LED tube light

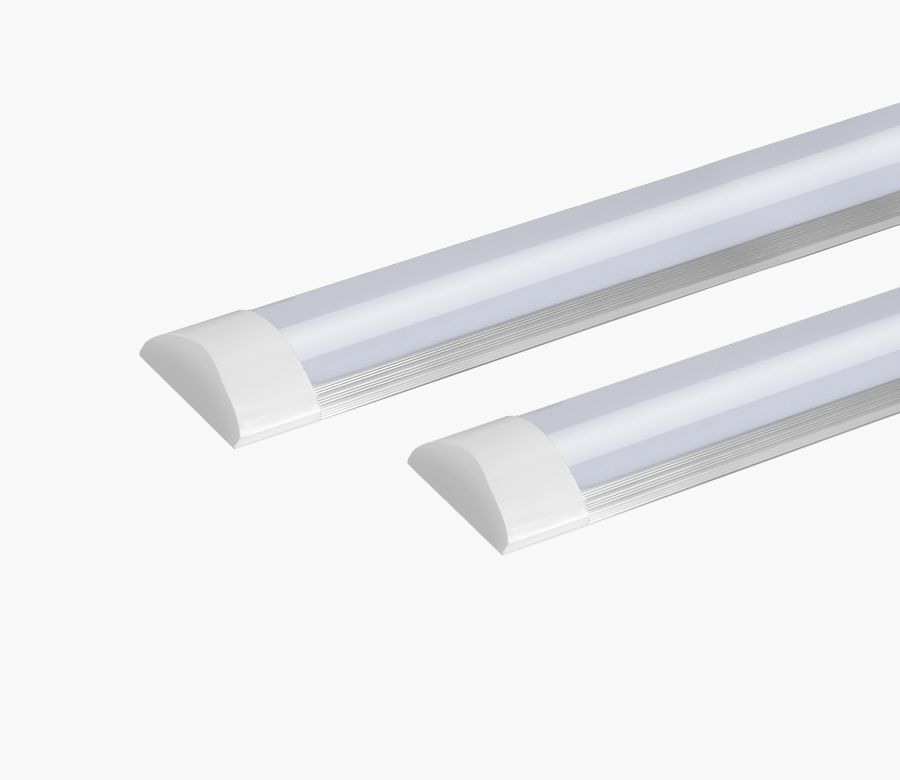

LED batten tube light

Wall surface mounting, large luminous area, dust-proof, fog-proof and insect-proof, can be used in warehouses, workshops, garages, parking lots, supermarkets and other commercial environments

Energy saving with high bright lumens

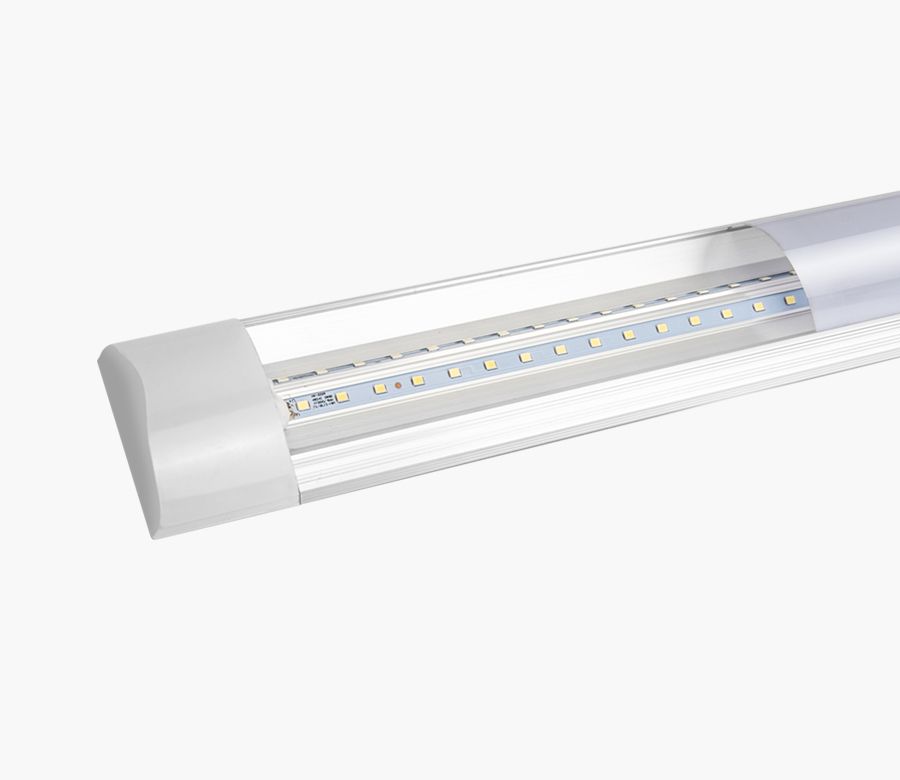

Well-known brand led chips

High-performance LED optical configuration, to meet the needs of various lighting solutions SDCM<6, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, 3000K 4000K 6500K optional

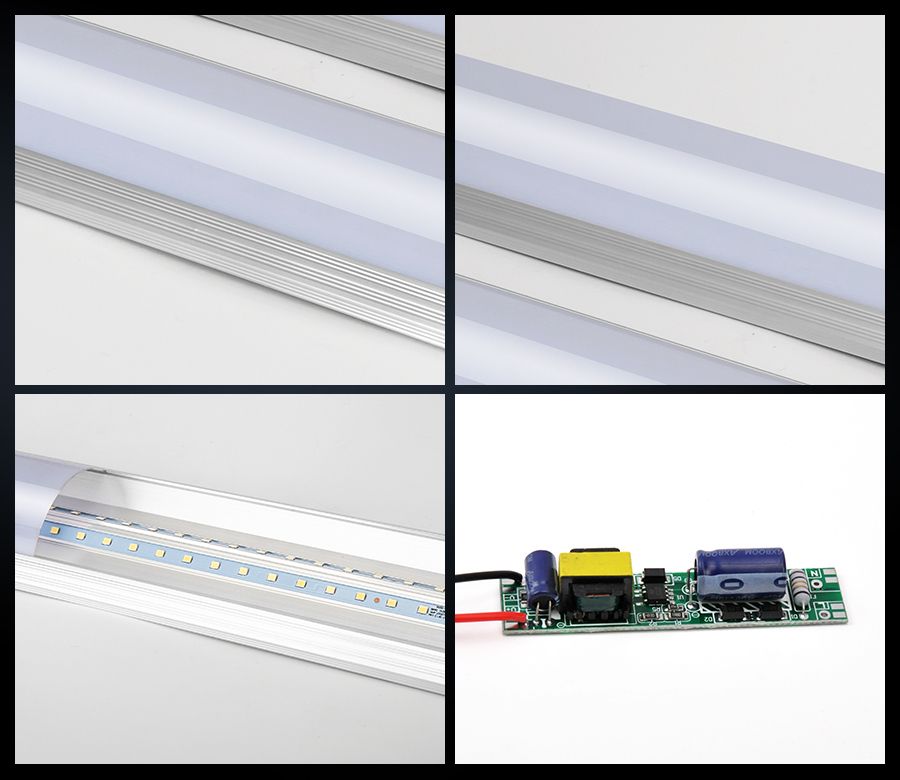

Made of high quality materials

Aluminum housing and IC led driver

All materials are strictly quality controlled, using high lumen brand lamp beads, die-cast aluminum heat dissipation housing, IC constant current driver, etc. Energy saving and environmental protection, long life use

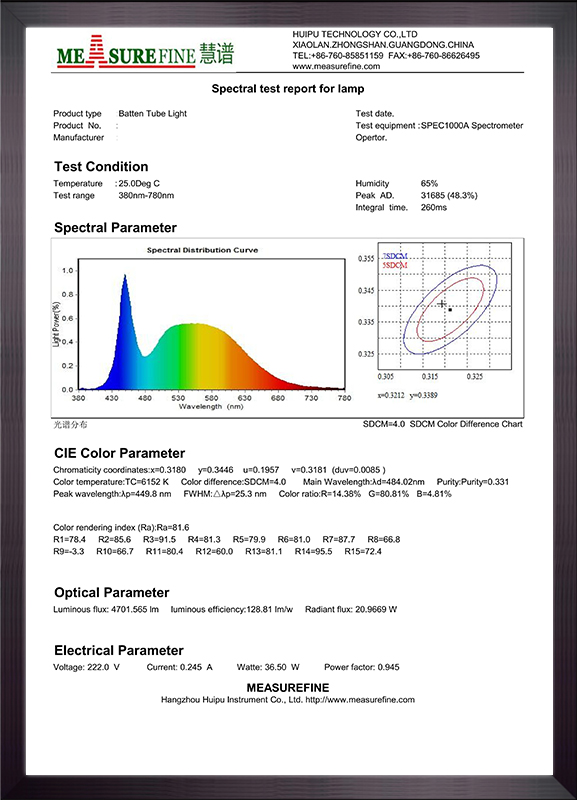

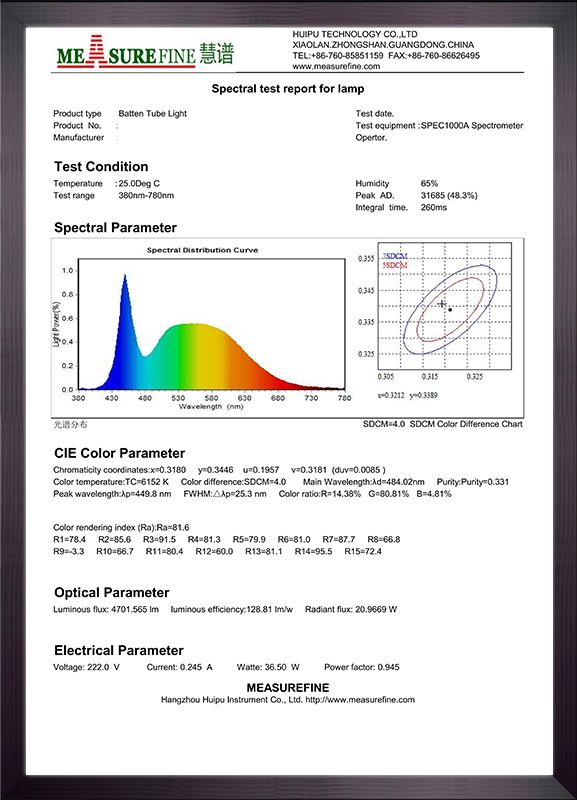

OPTICAL INSPECTION REPORT

If you need ies report, please consult our business

We can provide professional lighting solutions and lighting simulation effect solutions

APPLICATION SCENARIO DISPLAY

Landscape Lighting

Discover LUFUL’s landscape lighting solutions with high mast lights, courtyard lamps, and LED retrofit sources. Perfect for gardens, parks, and outdoor projects.

Street Lighting Project Solutions

Upgrade your road lighting with LUFUL’s smart LED street lighting project solutions. Explore WP1 Smart Waterproof Bulb and WP2 Smart Street Light Bulb.

High Bay Industrial Lighting

Explore LUFUL’s industrial high bay lighting for workshops and warehouses. Upgrade with LED high bay lights and retrofit bulbs for efficient, durable, and energy-saving lighting.

Datasheet

Guangdong LUFUL Lighting Technology Co., Ltd.

LED TUBE LIGHT

Spec Sheet Revision Date: 2024-12-01

Model: LF-SF12-36W

Electricity Parameter

·Rated Power:

36W

·Working Power:

36W（±5%）

·Input Voltage:

AC100-265V

·Freqency Range:

50/60Hz

·Power Factor:

＞0.6

·Power Efficiency:

88﹪

Optical Parameter

·Light source configuration

Sanan

·Color Temperature:

3000K 4000K 6500K

·Led Initial Flux:

4680lm

·Luminous Efficiency:

130LM/W（±5%）

·Light attenuation standard

≥25000

·Power configuration:

IC Constant Current Driver

·Color Rendering Index:

Ra＞80

·Luminous Anlge:

＞120°

Lamp Specification

·Lamp Material:

Aluminum

·Lampshade Material:

PC Cover

·Lamp Colour:

White

·Installation:

Surface Mounted

·Thickness :

75mm

·Overall Dimension :

1.2M

·IP Grade :

IP20

·Working Temperature :

—20℃—60℃

·Working Life-span :

35000H

Why Choose This LED Batten Tube Light?

The LF-SF12-36W LED Batten Tube Light from LUFUL is designed for modern indoor lighting, combining energy efficiency, durability, and high brightness. Unlike traditional fluorescent tubes, this integrated LED fixture delivers consistent, flicker-free light, reducing eye strain in both commercial and residential environments. Its sleek surface-mounted design makes installation quick and hassle-free, while the die-cast aluminum housing ensures effective heat dissipation, prolonging the lifespan of the LEDs.

Applications of LED Batten Tube Lights

This high-performance LED Batten Tube Light is ideal for a variety of spaces:

Commercial Areas: Warehouses, workshops, garages, parking lots, and supermarkets
Residential Spaces: Living rooms, kitchens, hallways
Professional Settings: Offices, retail stores, and showrooms

The dust-proof, fog-proof, and insect-proof design ensures clean, bright light in challenging environments, making it a versatile solution for all LED Tube Lights needs.

Advantages of LF-SF12-36W

High Luminous Efficiency: 130LM/W provides bright, clear illumination, effectively replacing traditional fluorescent tubes.
Energy Saving: IC constant current driver and premium LED chips reduce electricity consumption, lowering operational costs.
Durability: With a working lifespan of 35,000 hours, this fixture minimizes maintenance and replacement frequency.
Wide Light Distribution: >120° luminous angle ensures uniform lighting across large areas.
Safety & Quality: CE, FCC, RoHS, ERP, and PSE certifications guarantee compliance with international standards.

Customization & Support

LUFUL offers professional lighting solutions tailored to your project. If you require IES reports, lighting simulation, or specific color temperature options (3000K, 4000K, 6500K), our technical team is ready to assist, ensuring your LED Tube Lights installation meets both functional and aesthetic requirements.

Installation Tips

Ensure a flat surface for secure mounting.
Use the recommended AC100-265V input to avoid electrical issues.
For optimal lifespan, avoid exposure to excessive heat or moisture despite IP20 rating.
