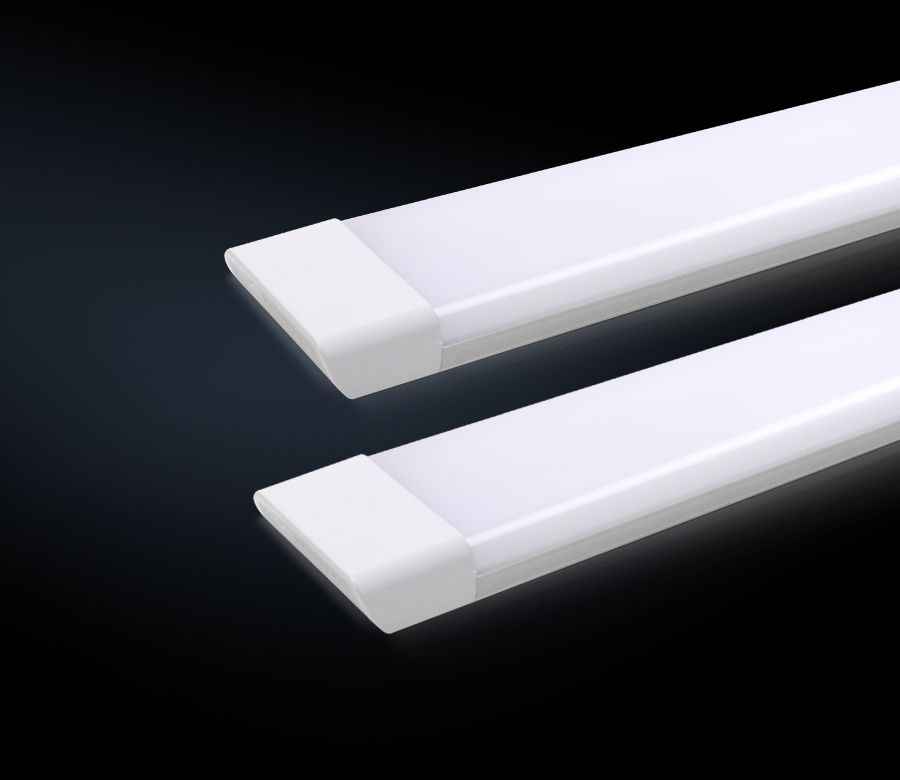

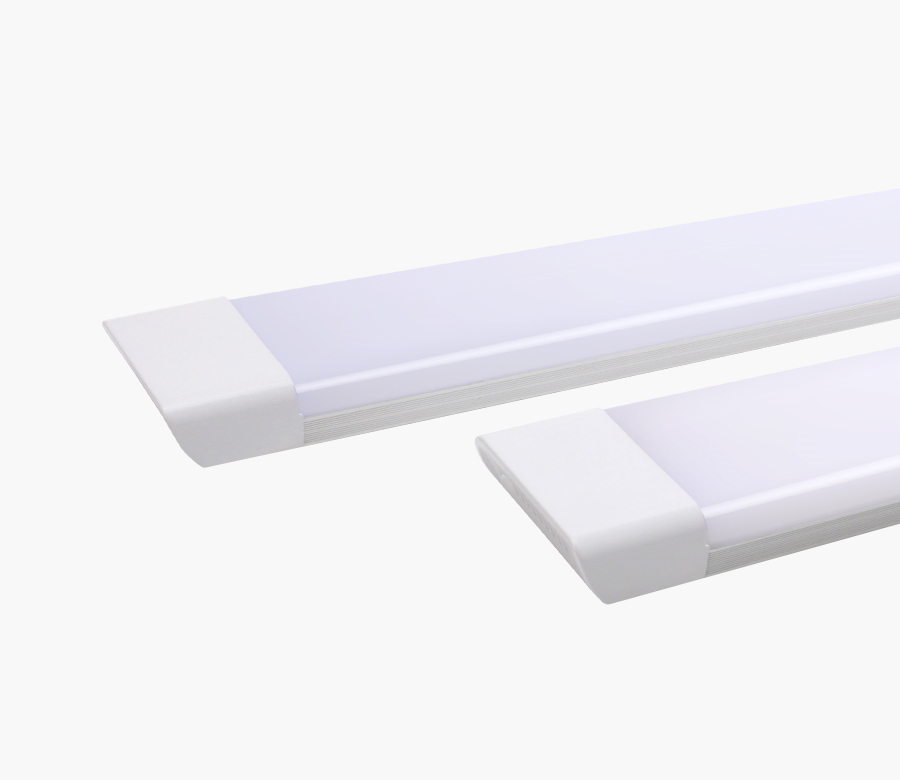

LED Batten Tube Light Square 42W 55W

Description

1. CE FCC RoHS ERP PSE certificated

2. Integrated LED tube light fixture, surface mounting

3. Die-casting aluminum housing for better heat disspation

4. Equipped with high-efficiency IC constant driver

5. Energy-saving LED lighting for indoor lighting

6. High lumens up to 130LM/W, replace fluorescent tubes

7. Mainly used in household, living room, shopping mall, commercial lighting, garage, warehouse, factory, etc.

Inquire Now

Product Introduction

Indoor LED tube light

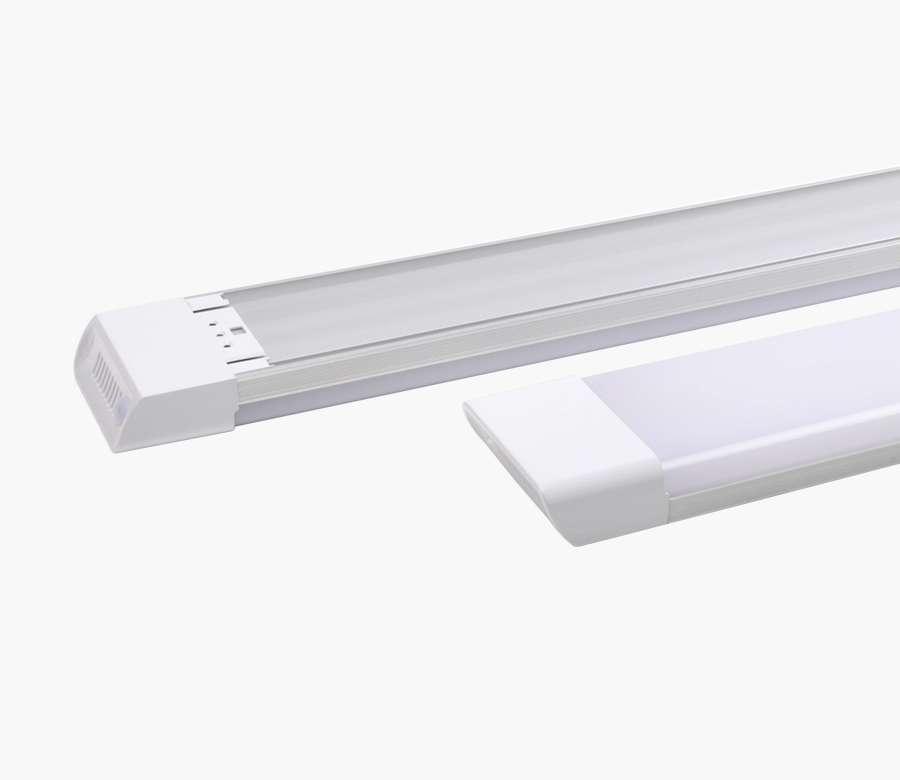

LED batten tube light

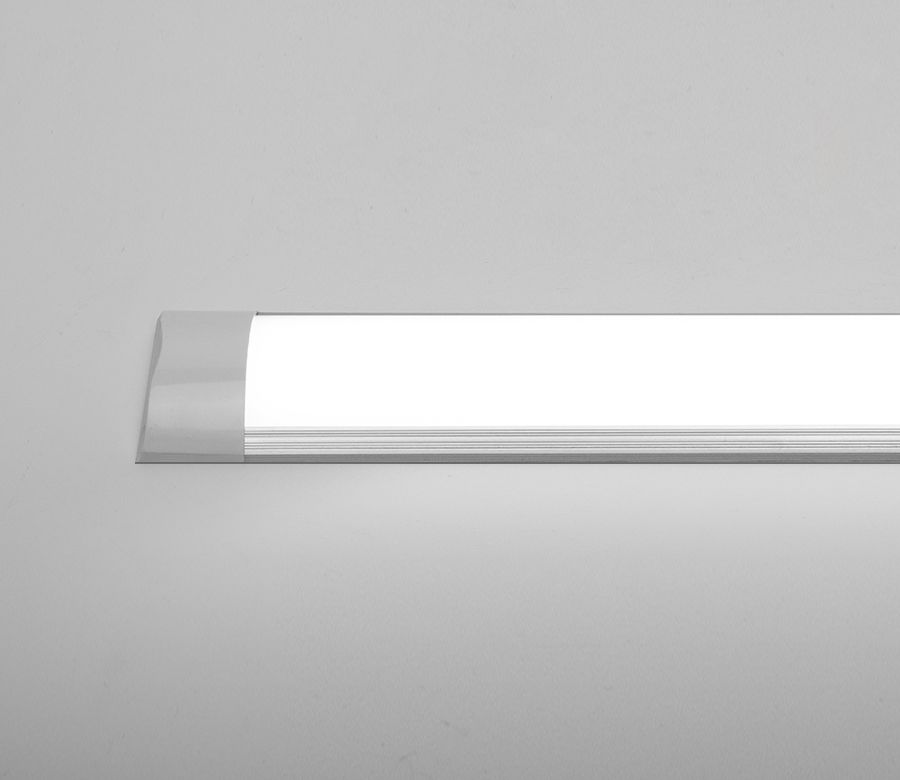

Wall surface mounting, large luminous area, dust-proof, fog-proof and insect-proof, can be used in warehouses, workshops, garages, parking lots, supermarkets and other commercial environments

Energy saving with high bright lumens

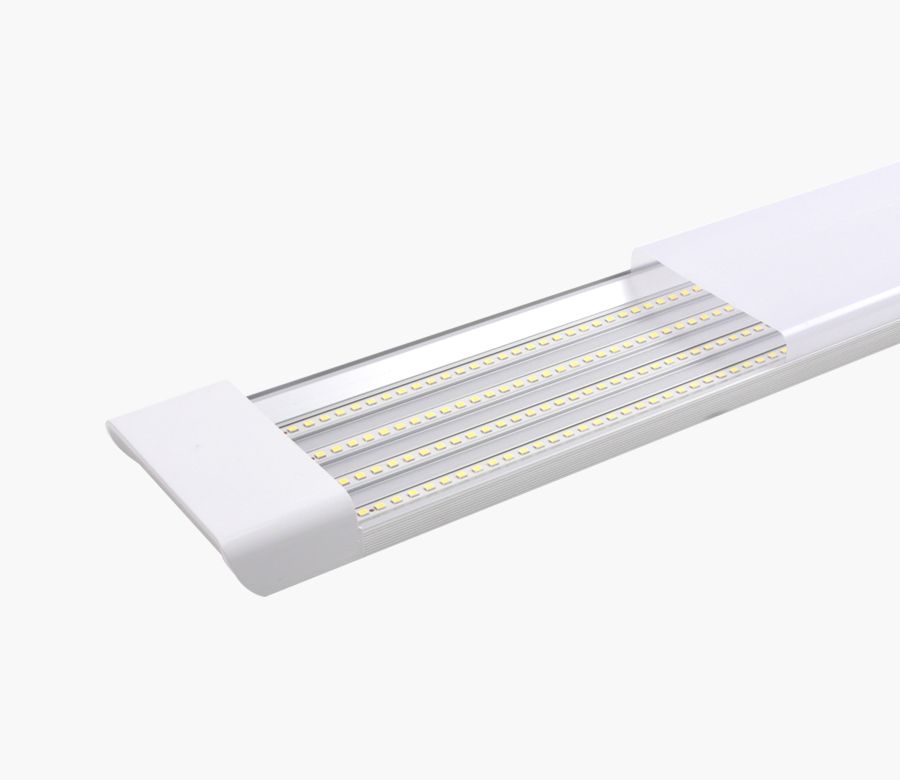

Well-known brand led chips

High-performance LED optical configuration, to meet the needs of various lighting solutions SDCM<6, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, 3000K 4000K 6500K optional

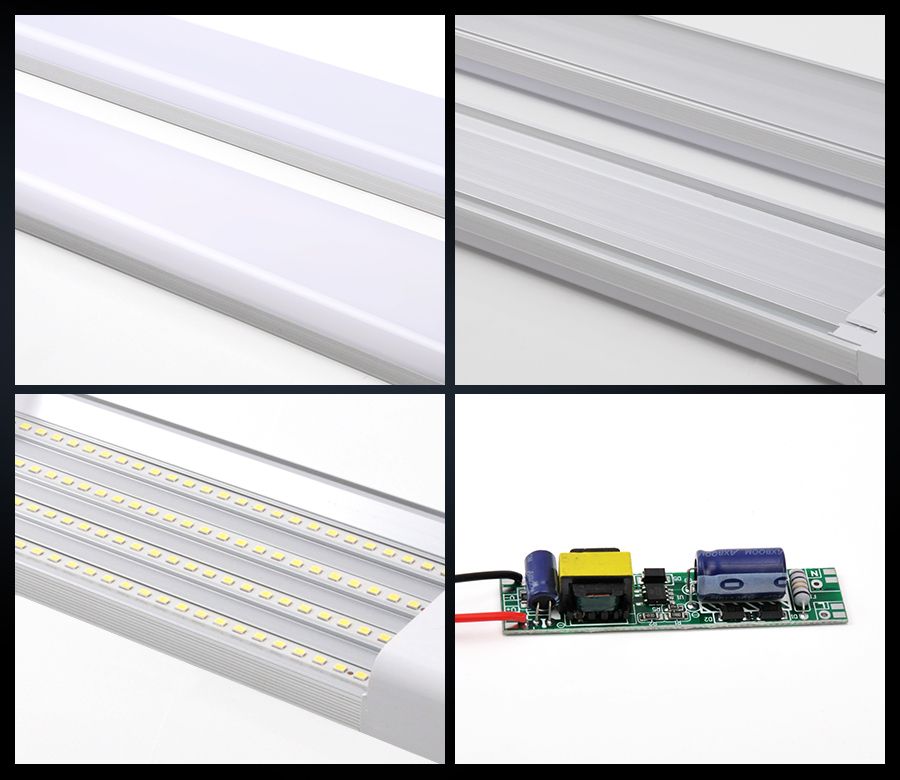

Made of high quality materials

Aluminum housing and IC led driver

All materials are strictly quality controlled, using high lumen brand lamp beads, die-cast aluminum heat dissipation housing, IC constant current driver, etc. Energy saving and environmental protection, long life use

APPLICATION SCENARIO DISPLAY

Landscape Lighting

Discover LUFUL’s landscape lighting solutions with high mast lights, courtyard lamps, and LED retrofit sources. Perfect for gardens, parks, and outdoor projects.

Street Lighting Project Solutions

Upgrade your road lighting with LUFUL’s smart LED street lighting project solutions. Explore WP1 Smart Waterproof Bulb and WP2 Smart Street Light Bulb.

High Bay Industrial Lighting

Explore LUFUL’s industrial high bay lighting for workshops and warehouses. Upgrade with LED high bay lights and retrofit bulbs for efficient, durable, and energy-saving lighting.

Datasheet

Guangdong LUFUL Lighting Technology Co., Ltd.

LED TUBE LIGHT

Spec Sheet Revision Date: 2024-12-01

Model: LF-SFSQ12

Electricity Parameter

·Rated Power:

42W 55W

·Working Power:

42W 55W（±5%）

·Input Voltage:

AC100-265V

·Freqency Range:

50/60Hz

·Power Factor:

＞0.6

·Power Efficiency:

88﹪

Optical Parameter

·Light source configuration

Sanan

·Color Temperature:

3000K 4000K 6500K

·Led Initial Flux:

5460-7150lm

·Luminous Efficiency:

130LM/W（±5%）

·Light attenuation standard

≥25000

·Power configuration:

IC Constant Current Driver

·Color Rendering Index:

Ra＞80

·Luminous Anlge:

＞120°

Lamp Specification

·Lamp Material:

Aluminum

·Lampshade Material:

PC Cover

·Lamp Colour:

White

·Installation:

Surface Mounted

·Thickness :

75mm / 100mm

·Overall Dimension :

1.2M

·IP Grade :

IP20

·Working Temperature :

—20℃—60℃

·Working Life-span :

35000H

Why Choose Our LED Batten Tube Light Square?

Our LUFUL LED Batten Tube Light Square 42W/55W combines high efficiency and modern design to deliver superior indoor lighting. Compared to traditional fluorescent tubes, these LED Tube Lights provide higher luminous efficiency, lower energy consumption, and longer lifespan. Perfect for both residential and commercial applications, they create a bright, comfortable, and energy-saving environment.

Key Advantages:

Eco-Friendly & Energy Saving: With a luminous efficacy of up to 130LM/W, this LED batten reduces electricity costs significantly while minimizing environmental impact.
Durable & Long-Lasting: Die-cast aluminum housing and IC constant current driver ensure excellent heat dissipation, extending lamp life to 35,000 hours.
Versatile Applications: Ideal for homes, offices, shopping malls, warehouses, garages, and other commercial spaces. Its dust-proof and insect-proof design ensures reliable operation in all indoor environments.
Superior Light Quality: With CRI ≥ 80, SDCM < 6, and optional color temperatures of 3000K, 4000K, and 6500K, the light is uniform, glare-free, and visually comfortable.
Easy Installation & Maintenance: Surface-mounted design with a PC cover makes installation simple while providing safety and longevity.

Professional Lighting Solutions:

We provide customized lighting simulation and IES reports to help architects, designers, and facility managers optimize lighting layouts and meet specific project requirements.
