Description
1. CE FCC RoHS ERP PSE certificated
2. Original patented design product

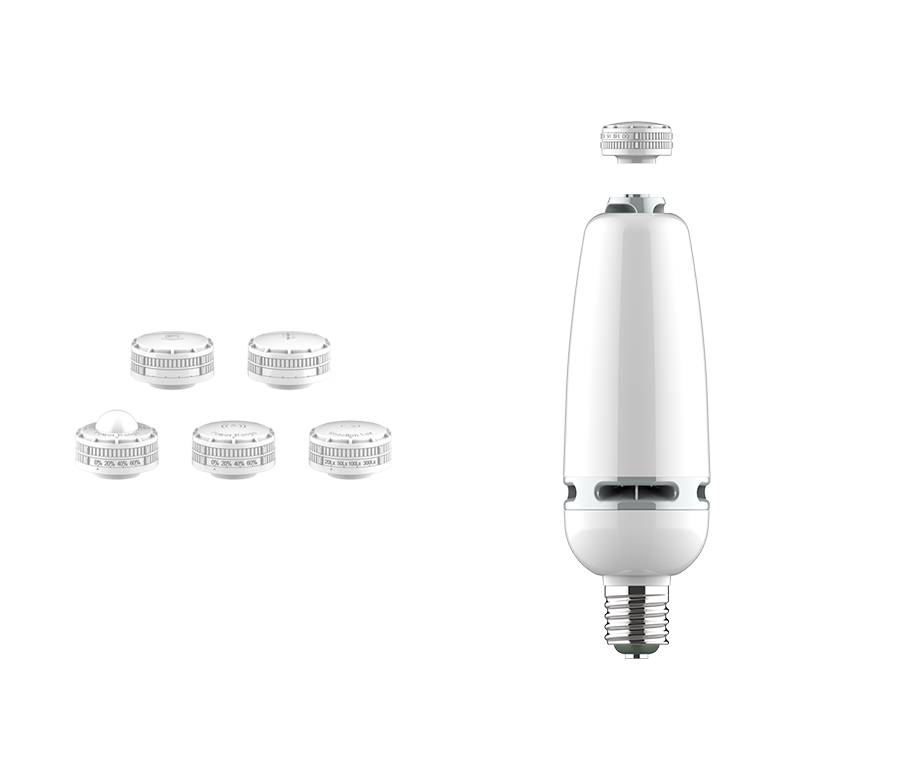

3. Smart driver inside with temperature control protection program, available connect to IR sensor, radard sensor, photocell sensor, BT Mesh control and Wi-Fi control modules
4. Designed with air convection cooling, it operates at a lower and safer temperature
5. Energy-saving LED lighting for industrial projects
6. Retrofit LED lamp to replace of HPS HID MHL
7. Waterproof grade rate up to IP65
8. Mainly used in outdoor lighting, high pole light fixture, street light fixture, garden light fixture,etc.
Share:
Product Introduction

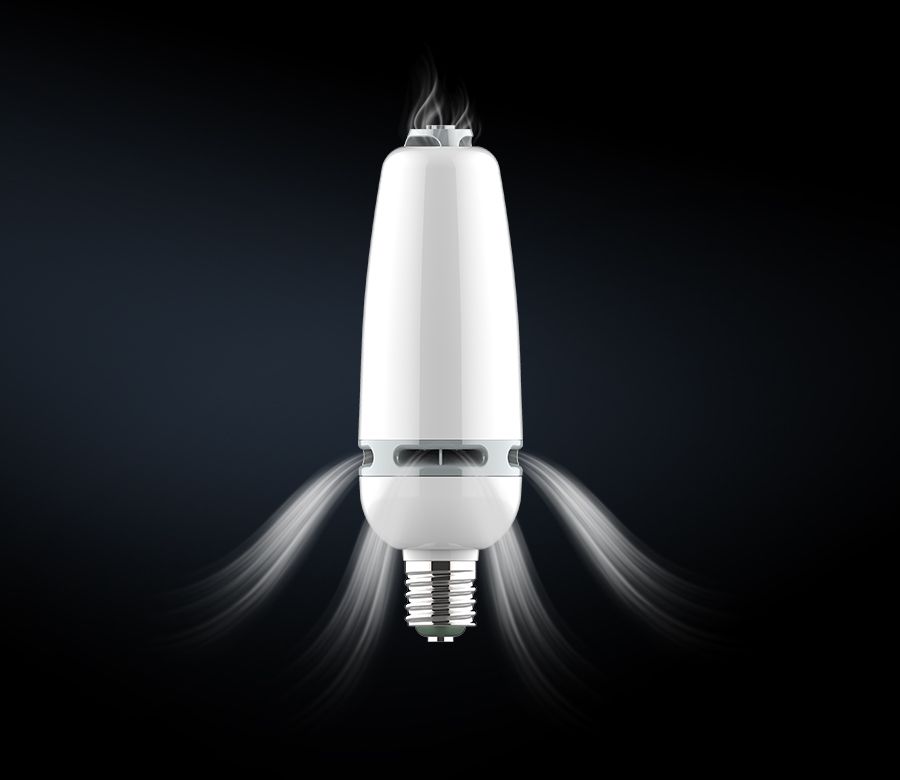

Fearless high temperature, strong heat dissipation
Unique heat dissipation design
1. During the use of the lamp, the cavity is prone to high temperature, and the principle of hot air flowing upward is adopted.
2. There are multiple aerodynamic air intake holes at the bottom, which draw in cool air in a naturally aspirated way.
3. Entering the heat dissipation cavity connected up and down inside the lamp body, a large amount of hot air is discharged from the air outlet on the top, so as to achieve the purpose of high-performance heat dissipation.
Outdoor waterproof
Ip65 waterproof grade
1. Under the premise of ensuring excellent heat dissipation performance, multiple waterproof rubber rings are set inside the lamp bodyPerfect cooperation between parts to achieve high-performance structural waterproofing
2. Through the precise waterproof and heat dissipation structure, it can work normally in any harsh environment
Energy saving with high bright lumens
Well-known brand led chips
New heat dissipation technology design patent, high-performance LED optical configuration, to meet the needs of various engineering lighting solutions SDCM<1, 130LM/W, CRI≥80RA,THD≤20%, AC100-277V, PF>0.95

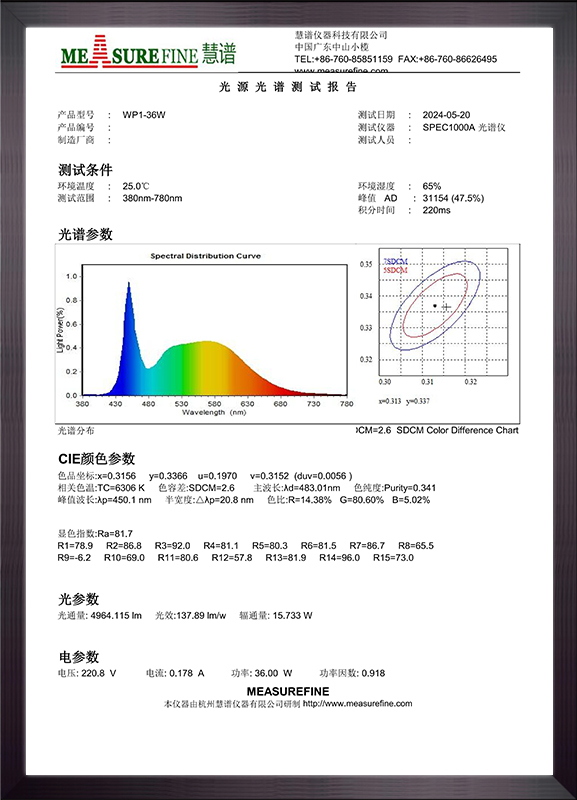

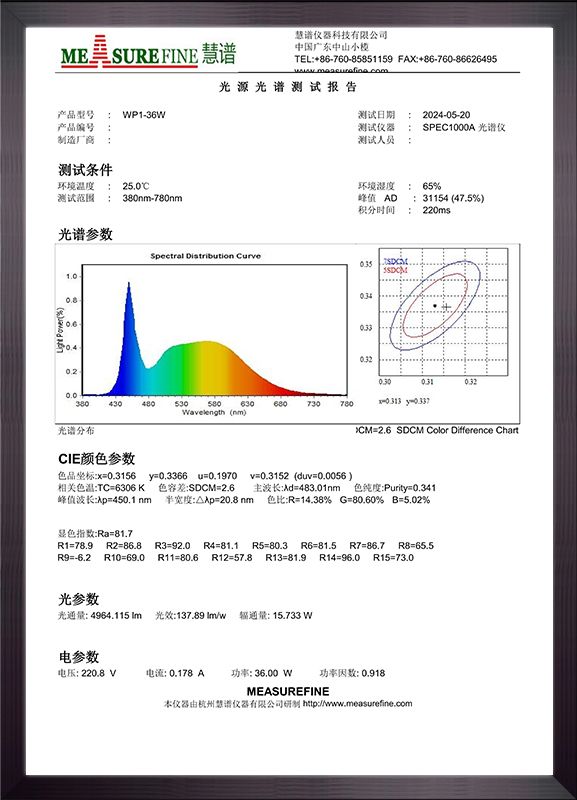

OPTICAL INSPECTION REPORT
If you need ies report, please consult our business
We can provide professional lighting solutions and lighting simulation effect solutions
APPLICATION SCENARIO DISPLAY
Datasheet
Guangdong LUFUL Lighting Technology Co., Ltd.
WP1 SMART WATERPROOF BULB | |||||||||||||||
Spec Sheet Revision Date: 2024-12-01 | |||||||||||||||
Model: LF-WP1-36W | |||||||||||||||
Electricity Parameter | |||||||||||||||
·Rated Power: | 36W | ||||||||||||||
·Working Power: | 36W(±5%) | ||||||||||||||
·Input Voltage: | AC100-277V | ||||||||||||||
·Freqency Range: | 50/60Hz | ||||||||||||||
·Power Factor: | >0.9 | ||||||||||||||
·Power Efficiency: | 88﹪ | ||||||||||||||
Optical Parameter | |||||||||||||||
·Light source configuration | Sanan | ||||||||||||||
·Color Temperature: | 3000K 4000K 6500K | ||||||||||||||
·Led Initial Flux: | 4680lm | ||||||||||||||
·Luminous Efficiency: | 135LM/W(±5%) | ||||||||||||||
·Light attenuation standard | ≥25000 | ||||||||||||||
·Power configuration: | Non-isolated IC Smart Driver | ||||||||||||||
·Color Rendering Index: | Ra>80 | ||||||||||||||
·Luminous Anlge: | >220° | ||||||||||||||
Lamp Specification | |||||||||||||||
·Lamp Material: | PC with aluminum heat sink | ||||||||||||||
·Lampshade Material: | PC Cover | ||||||||||||||
·Lamp Colour: | White | ||||||||||||||
·Base: | E27 / E39 / E40 | ||||||||||||||
·Lamp Weight: | 1.38KG | ||||||||||||||
·Overall Dimension: | φ90*283mm | ||||||||||||||
·IP Grade: | IP65 | ||||||||||||||
·Working Temperature: | -40℃-55℃ | ||||||||||||||
·Working Life-span: | 35000H |
